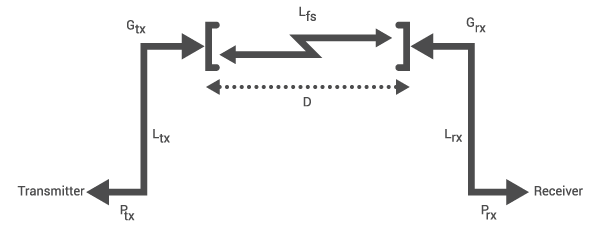

How To Calculate Link Budget. This link could be improved. Link budget is a way of quantifying a communication link's performance while accounting for the system's power, gains, and losses for both the transmitter (tx) and receiver (rx).

Figure 2 from Satellite Link Budget Calculator by Using Matlab/GUI 1 from www.semanticscholar.org

The ap to client link is possible, but below 10 db. This link could be improved. ‣ to calculate the maximum range, we must know the equipment parameters, calculate the free space loss and estimate the allowed loss.

Source: sites.google.com

Thus if we consider the region as spherical then the power density will be. At each site you have a radio connected to an antenna through an rf cable.

Source: www.allaboutcircuits.com

Releases 2.6.x, 3.2.x & 1.9.x The easiest way to calculate link losses is to perform an otdr test of the actual fiber link.

Source: www.scribd.com

Link loss = (fiber attenuation * distance) + ( splice loss * number of. In the design of wireless communications links between two sites, issues of range, throughput, and received signal quality are of critical importance to the system engineer.

Source: www.telecomhall.net

Fsl refers to the loss due to geometric spreading of signal in free space, while the link budget calculation will take the fsl into account to determine whether a link is feasible. Link loss = (fiber attenuation * distance) + ( splice loss * number of.

Source: www.ligowave.com

Atmospheric losses at 437 mhz minimum maximum minimum maximum elevation l atm (db) l atm (db) l sci Link budget calculations for the proposed system were completed following the general template used by lucente et with simplifications implemented by assuming gain defined by selected antenna to be constant over the bands of operation and antenna pointing to be ideal.

Source: www.semanticscholar.org

At each site you have a radio connected to an antenna through an rf cable. Power budget = buffer distance/fiber attenuation.

Source: www.rfsoftware.com

Derivation of link design formula. Some factors and design choices, such as propagation path length.

Source: www.gsm-modem.de

Loss budget analysis is the calculation of a fiber optic cabling system's estimated loss performance characteristics. The free space path loss is the loss in signal strength of a signal as it travells through free space.

Source: www.slideserve.com

Link budget calculations for the proposed system were completed following the general template used by lucente et with simplifications implemented by assuming gain defined by selected antenna to be constant over the bands of operation and antenna pointing to be ideal. It links together the requirements (data rate, ber) with the main design parameters of both the satellite communications subsystem and the ground segment.

Source: www.slideshare.net

Link budget is a way of quantifying a communication link's performance while accounting for the system's power, gains, and losses for both the transmitter (tx) and receiver (rx). Knowing the number of 5g sites will help the vendor and operator to estimate the cost and effort.

Source: www.oc2me.com

This will give you the actual loss values for all events in the link.also known as cable plant loss budget. Releases 2.6.x, 3.2.x & 1.9.x

Source: www.exceltemplates.org

Use this simple calculation to determine how much power budget of the sfp is available: Atmospheric losses at 437 mhz minimum maximum minimum maximum elevation l atm (db) l atm (db) l sci

The Power Density Is Defined As The Amount Of Power, An Antenna Receives In An Unit Area.

Estimate the maximum fiber distance if the optical budget and loss variable are known. The free space path loss is the loss in signal strength of a signal as it travells through free space. Calculate maximum link distance in cwdm network.

Estimate The Total Link Loss Across An Existing Fiber Optic Link In The Fiber Length And Loss Variables Are Known 2.

After the cable plant is installed, the calculated loss values are compared with the test results to ensure the link. This is sometimes confused with the communication system power budget which is a specification of the dynamic range of the electronics, the difference between the output power of the transmitter coupled into the fiber and the minimum received power. Thus if we consider the region as spherical then the power density will be.

In The Design Of Wireless Communications Links Between Two Sites, Issues Of Range, Throughput, And Received Signal Quality Are Of Critical Importance To The System Engineer.

Link budget and link loss budget are both vital analysis measures in fiber optic network design. Loss budget analysis is the calculation of a fiber optic cabling system's estimated loss performance characteristics. Wireless link budget analysis| how to calculate link budget for your wireless network online resources tranzeowireless technologies inc.

Link Budget Is A Way Of Quantifying A Communication Link's Performance While Accounting For The System's Power, Gains, And Losses For Both The Transmitter (Tx) And Receiver (Rx).

However, it’s important to have a basic understanding of how the process works. The ap to client link is possible, but below 10 db. Some factors and design choices, such as propagation path length.

Derivation Of Link Design Formula.

The easiest way to calculate link losses is to perform an otdr test of the actual fiber link. Usually, link budget calculation is done by decibel and decilog quantities. Loss budget calculate the estimate losses in fiber optic cabling system.
